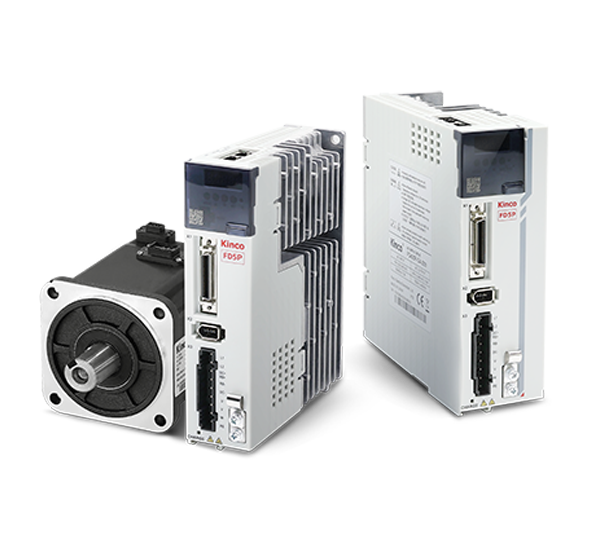

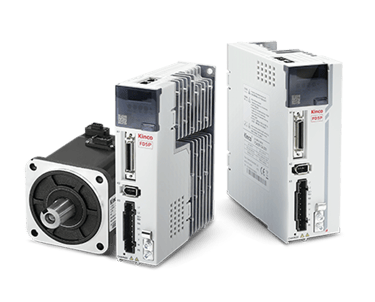

FD5P Series Servo Drives
Kinco Motion Control
FD5P series drives build a new platform
Support MODBUS, CANopen, EtherCAT, Profinet communication control;
Adapt to high-precision encoder applications;
FPD Manual
Download
Drive List
Product Information

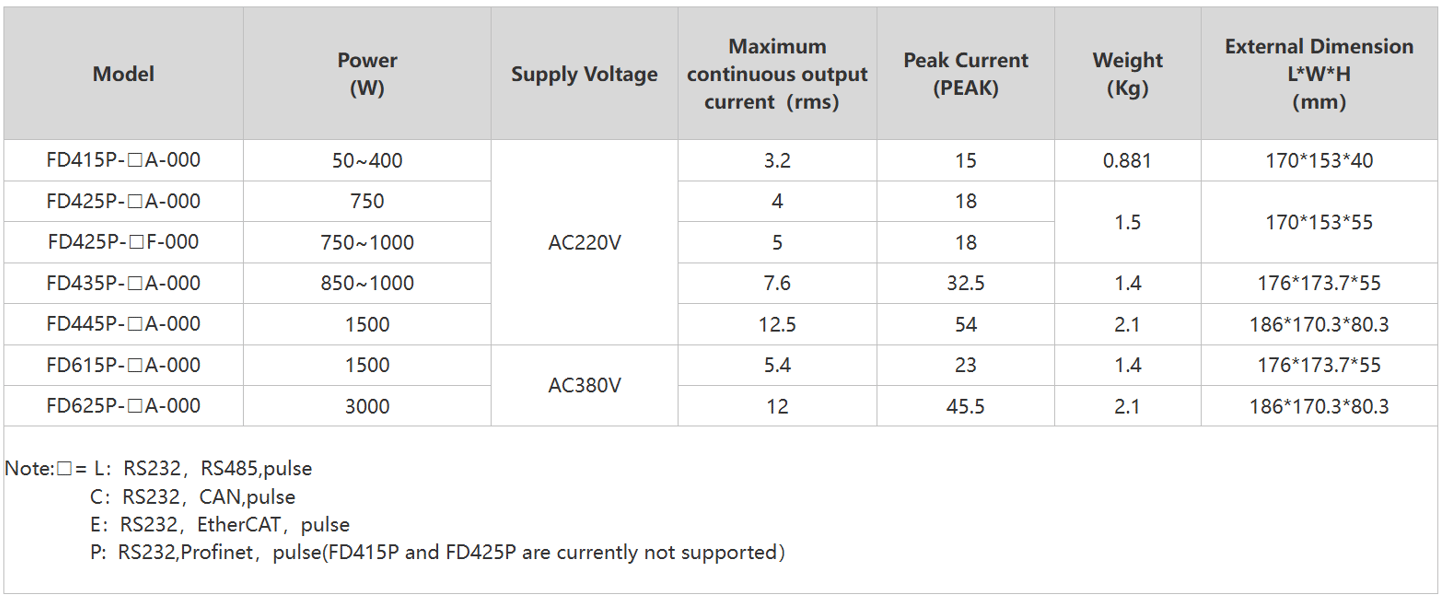

Model： FD415P/FD425P/FD435P/FD445P/FD615P/FD625P
Power range：50W~3000W
Supply voltage：1PH 200-240VAC; 1PH/3PH 200-240VAC ; 3PH 380-415VAC
■ Main Features
• Support pulse control;
• Supports MODBUS, CANopen, EtherCAT, Profinet communication control;
• Adaptable to high-precision encoder applications;
• Support EASY Tune optimization and online self-tuning.
• Trap filter for vibration suppression;
• S-curve control;
• Real-time synchronized control, which can effectively improve production efficiency and increase the precision of multi-axis synchronized control;
• IO contains 7-channel digital input, 5-channel digital output and encoder output;
• With driver over-voltage & under-voltage protection, over-current protection, overheating protection and short circuit protection, etc.
